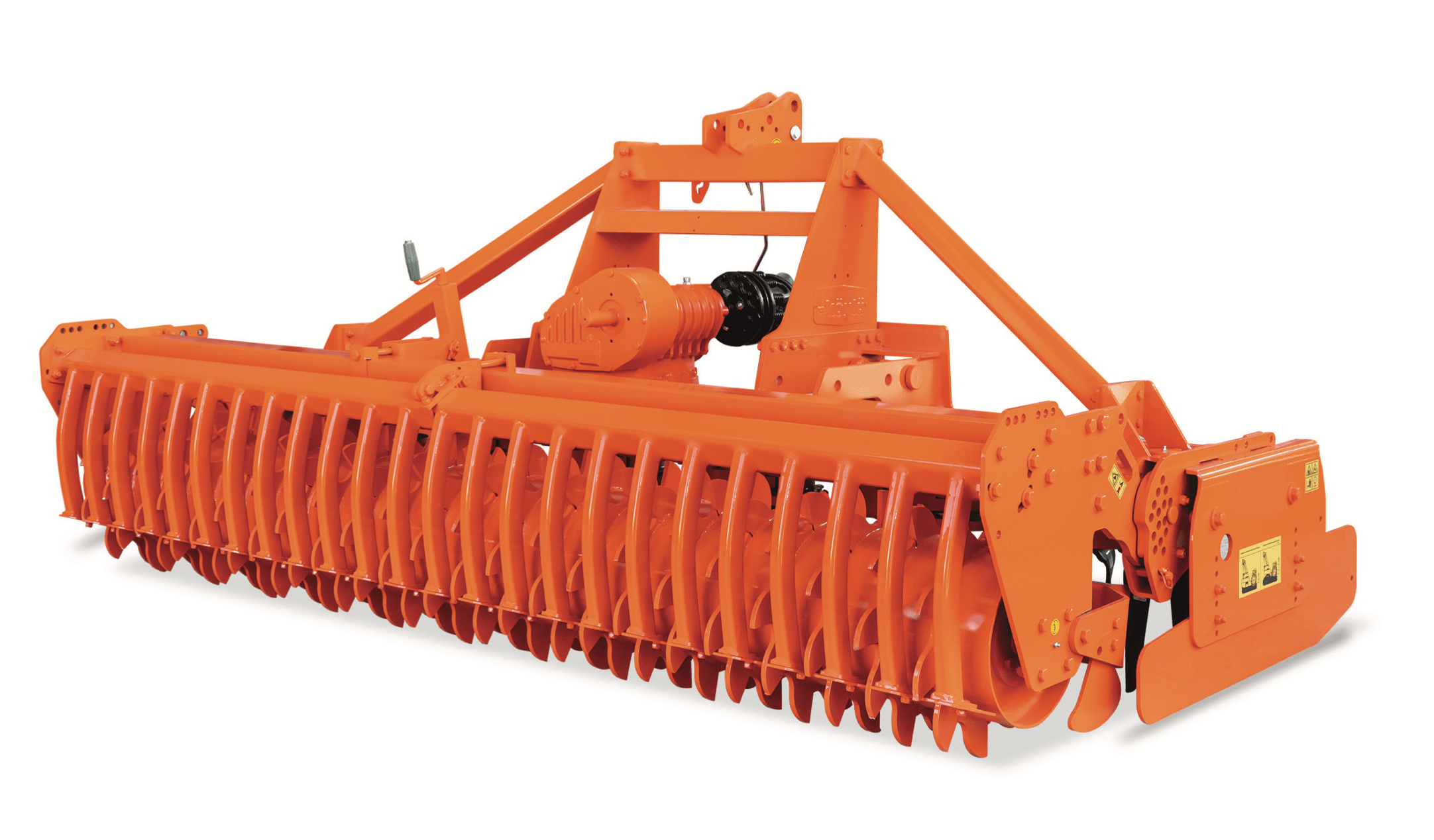

HMB DM HEAVY-DUTY TYPE POWER HARROW

HMB DM HEAVY-DUTY TYPE POWER HARROW


Vertical Mill / Mixer: It is a soil tillage machine that works with blades that rotate right-left perpendicular to the soil. It makes the shredded stubble ready for planting in one go. It is used to prepare the seed bed, to destroy plant wastes and weeds, to dissolve the fertilizer in the soil, to aerate the soil and to expand the inner surface of the soil. • It does not mix the soil by turning it upside down, thus; It ensures that the lower parts of the soil retain moisture. •The blades work by making a right-left rotation movement, they do not hold soil and work comfortably in rainy lands. •Working at a right angle allows the soil to pass rain and snow water more easily. It reduces the base formation in the soil and enables the roots to develop faster. •It offers the possibility of sowing at once with the sowing machine connection apparatus. Standard Equipment • International 3 hanger CAT |I connection system • 1 3/8" Z6 diameter 6 keyed pto protected shaft • 540 rpm PTO; Gearbox providing 2250 pm rotor speed • 12 cm long hammer knives •4 transfer belts; single point transfer group • Height adjustable flat roller • Front protection plates • It can be worked back and forth thanks to the design of being able to be attached to the tractor from both sides.


Technicial Specifications

DM Vertical Mill (TYPE) Working Width (cm) Tractor Power (kW/Hp) Total Width (cm) Number of Anchors (cm) Weight (kg) Processing Depth (cm)
2500 2500 59-103/80-140 260 20 1250 28
3000 3000 66-103/90-140 310 24 1450 28
3500 3500 81-118/110-160 360 28 1550 28
4000 4000 88-118/120-160 410 32 1730 28
